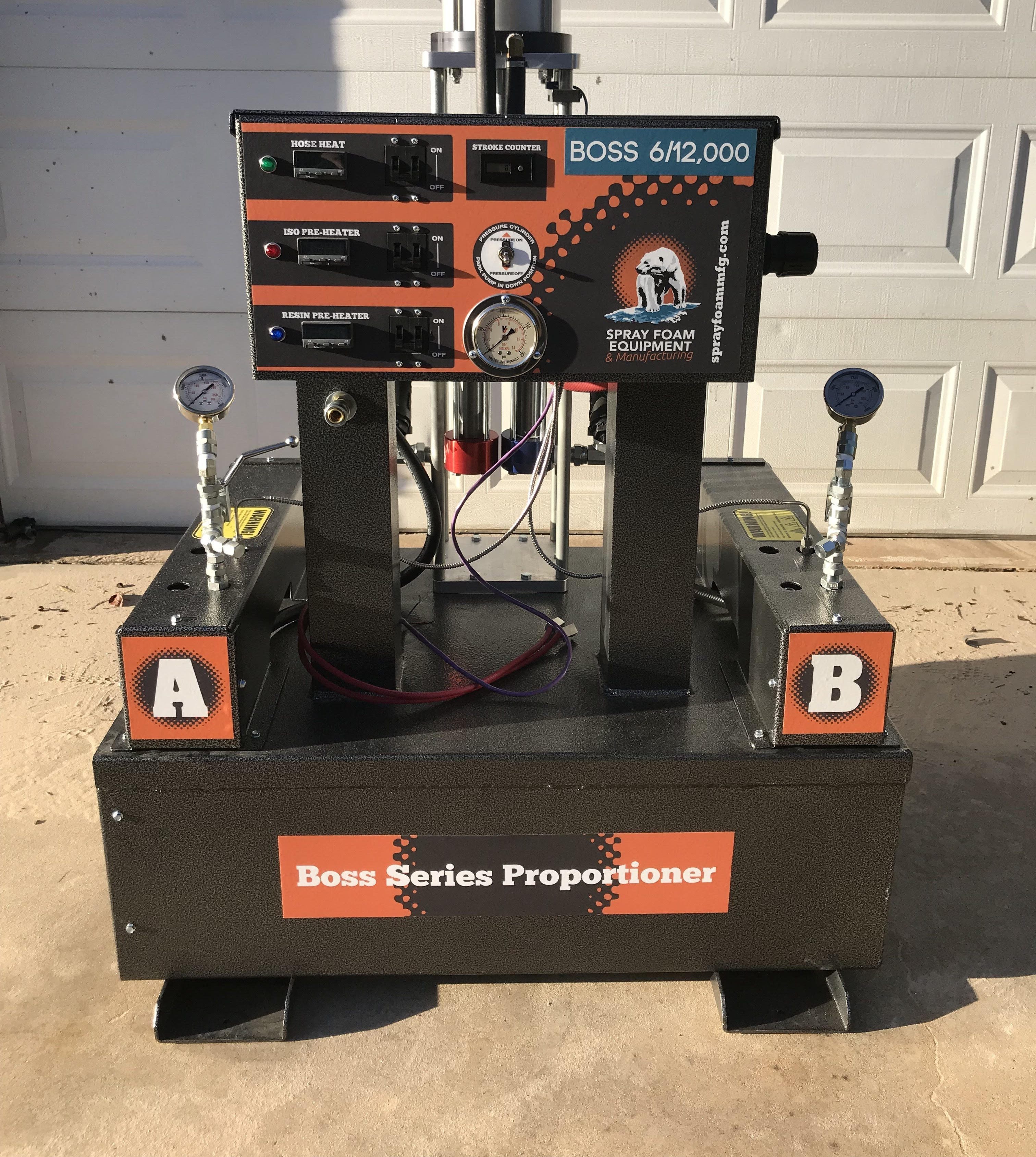

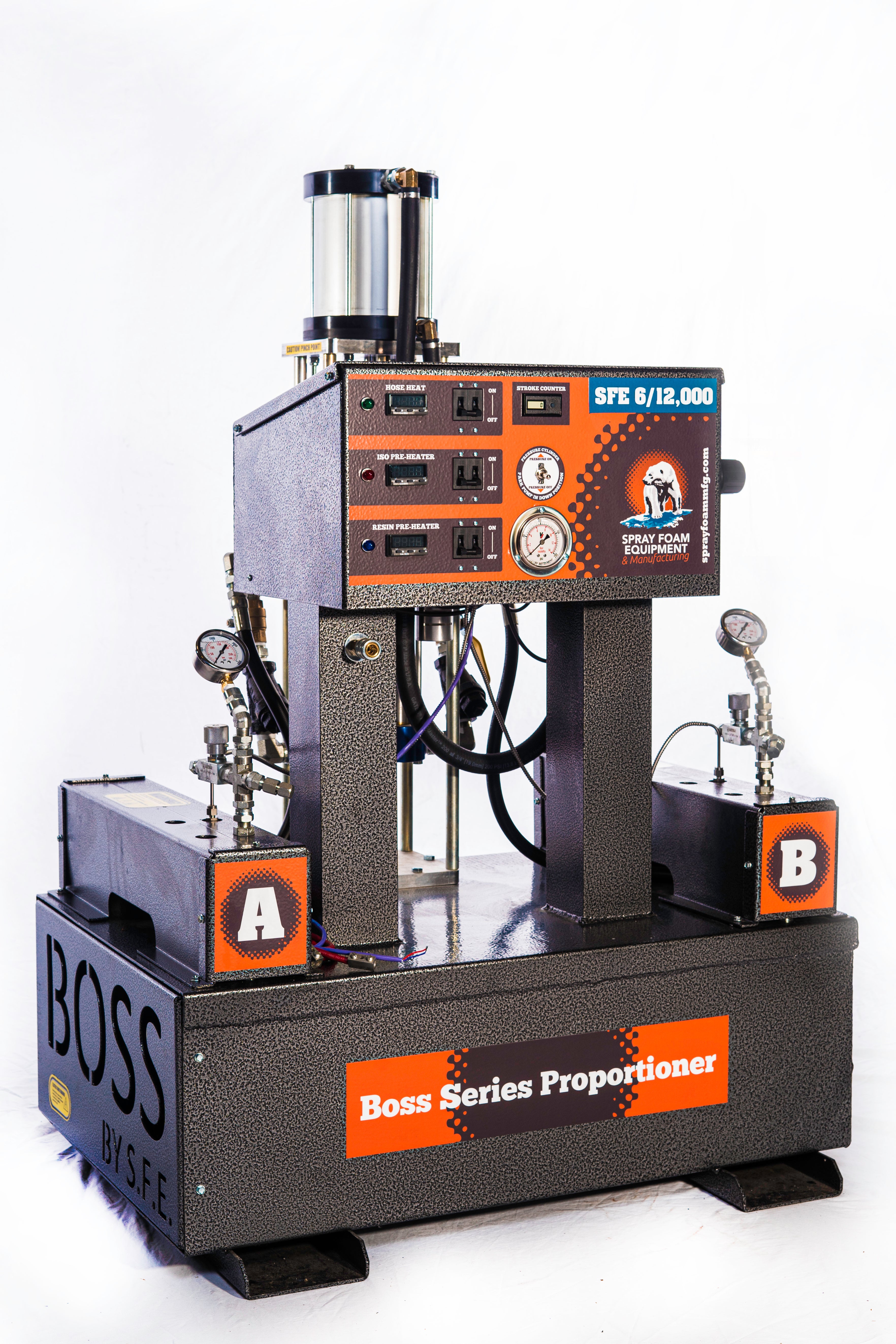

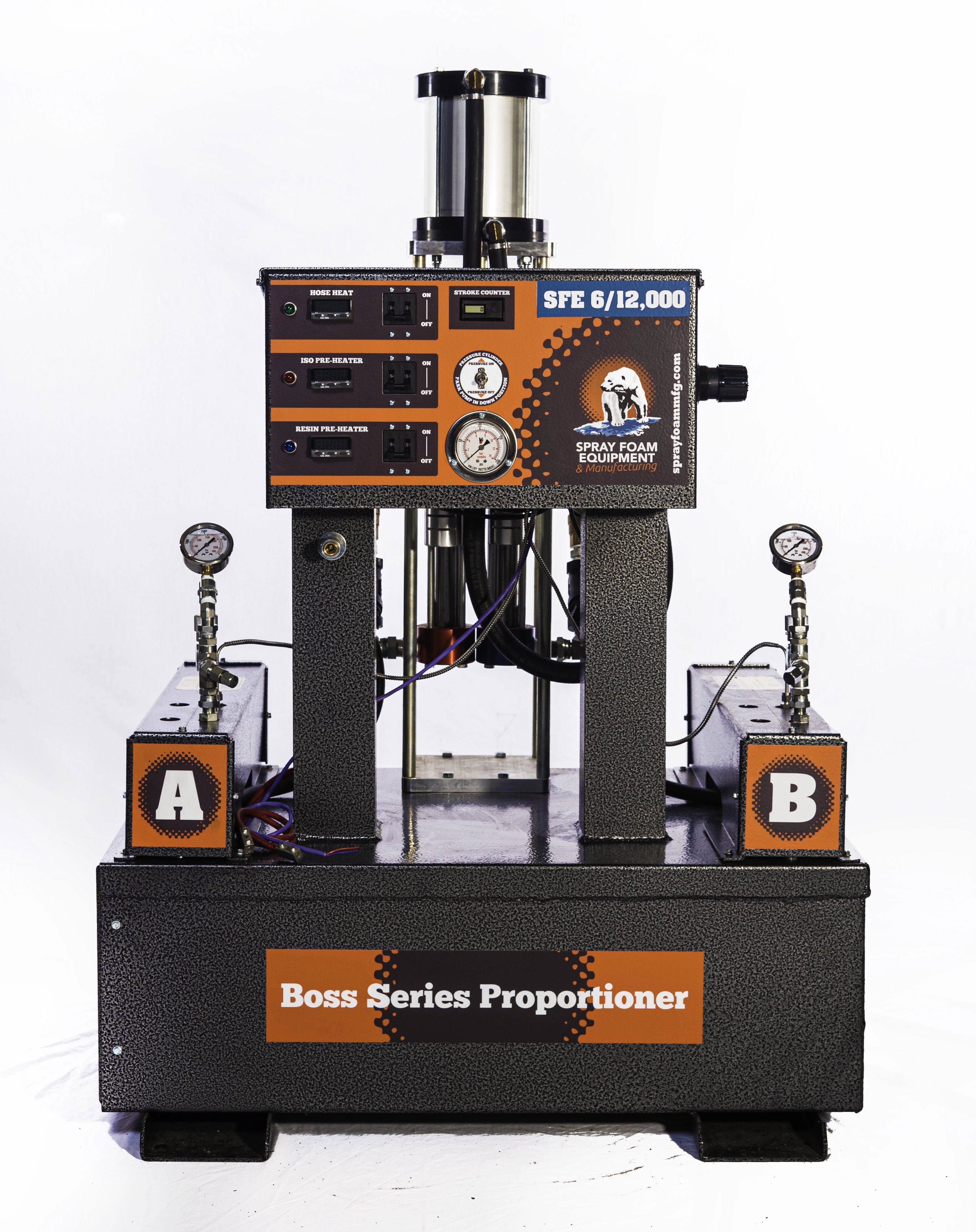

BOSS SFE 6/12K Proportioner Features
Dual heating blocks for the ISO and Resin provides extra heating elements for colder climates Simple 240V single-phase system. The electrical system is all breaker and relay design, for easy repairs if needed. Heating elements are much larger than those in competitive machines, capable of heating more material faster than other proportioners Designed to spray polyurethane or polyurea
foam, bed liners, sealants, slab jacking, etc.
3,000 psi maximum working pressure Air-driven machine with 6" motor Higher pressure output than 5" series Easily attainable components to minimize downtime Easy to power-on and power-off Digital heating controls Hose heat transformer for up to 400 feet of hose
Technical Data
Preheat 12,000 watts 195 degrees maximum fluid temperature 32 lb/min. maximum output .0500 gal/cycle output each cycle (A & B pumps) Fluid inlet 3/4" npt with 1/2" npt outlet Fluid outlets
Component A (ISO) #6 (3/8") JIC with #5 (5/16") JIC adapter Component B (Resin) #6 (3/8") JIC with #6 (3/8") JIC adapter
Fluid circulation1/4" with thermoplastic tubing (3000 psi) Parts contacting fluid: stainless steel, zinc plated, carbon steel, aluminum, chrome, brass, PTFE, Viton O-Rings Weight 301 lbs Dimensions - D:32" x W: 36: x H: 51" Air requirements - 17 cfm @ 150 psi; requires at least 26-30 cfm @ 175 psi, which is easily acquired with a 18 hp gas air compressor or 10 hp electric air compressor
Compare to: Graco: EXP1, EXP2, Reactor HXP-3, H-50
PMC: PFX-1600, PHX-2, PHX-25, PHX-40, PH-55
